Customized Opening Solutions

For museum grade display cases from WANGDA SHOWCASES,the durable opening system with designed lifespan not less than 50 years can withstand at least 2,000,000 times repeated circle operation with low maintenance.Scientifically designed and made by special steel and aluminum-alloy extrusions, the opening system from us is extraordinarily easy and convenient for operation by one person only even for huge museum display cases.The stable and robust opening system will not bring any danger or risk to museum staff at the time of mounting exhibits or demounting exhibits.All the opening systems are completely invisible under closed status.Manual opening system,motor-driven opening system or wireless remote-control opening system can be customized according to actual exhibits and/or exhibition demand and the site conditions.

---

HEREINAFTER ARE TYPICAL OPENING SOLUTIONS AND OTHER UNTYPICAL OPENING SYSTEM LIKE DIAGONAL OPENING, PULL & SLIDE+ 90° ROTATION, SLIDING-OUT OPENING ETC. CAN BE CUSTOMIZED AS SPECIFIED.

I. HINGED OPENING SYSTEM

A).Hinged Opening System for tabletop display cases-

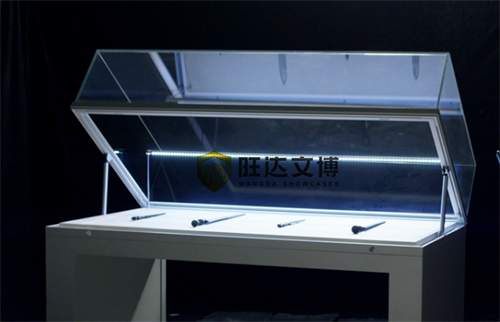

Made by high-intensity special steel, multi-pivot hinge mechanisim is concealed in the lower back profile to allow the glass hood of tabletop display cases to flip up with max.45° opening for full access. With hidden hydraulic struts support from sides, the hinge mechanism with unique design and robust structure never weakens the safety, stability and airtightness of display cases. The openable glass hood is locked by museum grade mechanical cylindrical locks like Abloy locks or equivalent.

B). Hinged Opening System for freestanding display cases-

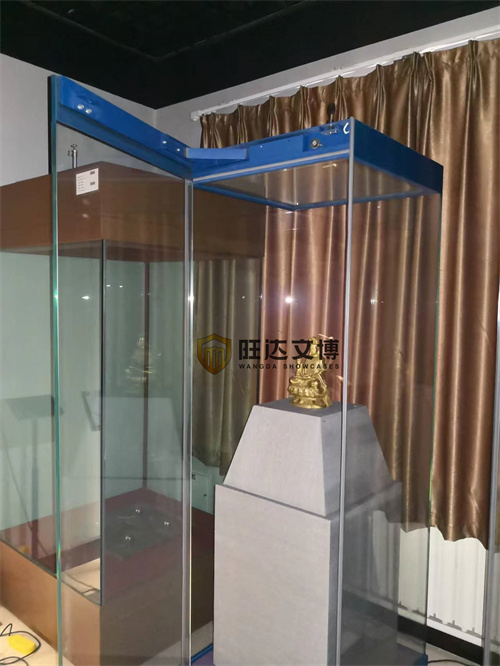

Made by high-intensity special steel, the multi-pivot hinge mechanisims are invisibly installed in the upper and lower to allow the glass front door to drive out and swing outward/inward for max.90° opening for 100% full access. With no additional support, the high-intensity hinge mechanism with unique design and robust structure never weakens the safety, stability and airtightness of display cases. The openable glass front door is locked by museum grade mechanical disc locks like Abloy locks or equivalent.

  C). Hinged Opening System for wall display cases-

Made by high-intensity special steel, the multi-pivot hinge mechanisims are invisibly installed in the upper and lower to allow the glass front door for wall display cases to drive out and swing outward/inward around the side vertical axis for max.90° opening for 100% full access. With no additional support, the high-intensity hinge mechanisms with unique design and robust structure never weakens the safety, stability and airtightness of display cases. The openable glass front door is locked by museum grade mechanical disc locks like Abloy locks or equivalent.

II. PULL & SLIDE OPENING SYSTEM

A). Pull & Slide Opening System for freestanding display cases-

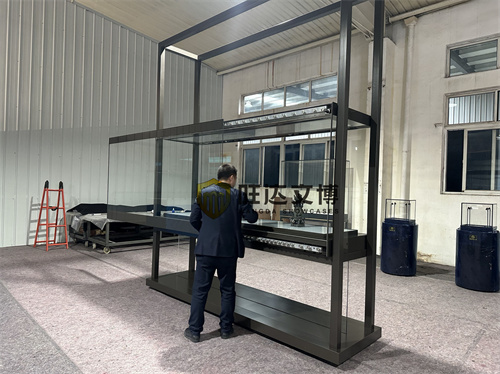

Made by special high-intensity steel and aluminum alloy, pull and slide opening system allows the upper and lower of the glass front of freestanding display cases to synchronously drive out then move to both left and right with max. opening not less than 90% limited by safety positioner. Generally if not specified, max. 60% opening is very popular for most of freestanding display cases. Usually mono rail pull & slide opening mechanism is applicable to freestanding display cases with glass top and duail pull & slide mechanisms are applicable to freestanding display cases with 4 sided glass and solid attic. The quantity of pull & slide opening glass doors is up to the dimensions of freestanding display cases. Usually for display cases with length less than 3 meters, single pull & slide glass opening door is suggested but for larger size, it's suggested to have multiple glass doors or single glass door can be customized as sepcified. The unique design, robust structure and high-intensity materials make the pull & slide opening mechanism not weaken the stability and airtightness of display cases.Usually manual pull&slide opening system is applied but for larger freestanding display cases, motor-driven or even wireless remote-control pull&slide opening system can be customized for easier and safer operation.

  B). Pull & Slide Opening System for wall display cases-

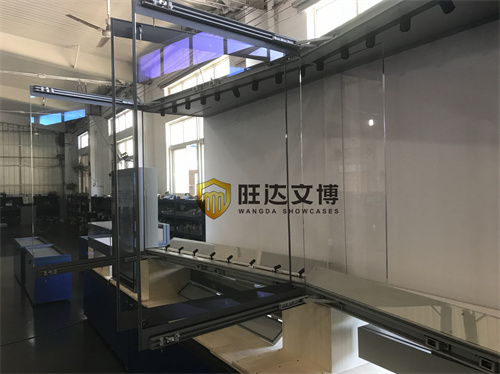

Made by special high-intensity steel and aluminum alloy, pull and slide opening system allows the upper and lower of the glass front of wall display cases to synchronously drive out then move to both left and right with max. opening not less than 90% limited by safety positioner. Generally if not specified, max. 60% opening is very popular for most of wall display cases. Usually mono rail pull & slide opening mechanism is applicable to wall display cases with glass top and duail pull & slide mechanisms are applicable to wall display cases with solid light chamber. The quantity of pull & slide opening glass doors is up to the dimensions of wall display cases. Usually for wall display cases with overall length less than 3 meters, single pull & slide glass opening door is suggested but for larger size, it's suggested to have multiple glass doors or single glass door can be customized as sepcified. The unique design, robust structure and high-intensity materials make the pull & slide opening mechanism not weaken the stability and airtightness of display cases.Usually manual pull&slide opening system is suggested but for larger or higher wall display cases, motor-driven or even wireless remote-control pull&slide opening system can be customized for easier and safer operation.



III. LIFTING OPENING SYSTEM

A). Lifiting Opening System for tabletop display cases-

Equipped with concealed high-intennsity and durable vertical lifting system in the lower chamber of lower metal plinth, the lifting opening system allows the glass hood of tabletop display cases to lift up with max. opening at same height of glass hood for full access. Scissor style or square lifting pillar or rod lifting pillar lifting systems ensure synchronous lifting stably at each corner so no risk of glass breakage comes up during the opening. Usually for tabletop display cases with glass hood higher than 450mm, it's suggested to adopt lifting opening system but for tabletop display cases with shorter glass hood, traditional hinged glass hood is suggested. The unique design, robust structure and high-intensity materials make the opening mechanism not weaken the stability and airtightness of display cases.Manual or motor-driven or wireless remote-control lifting opening system can be customized particularly according to actual exhibition demand.

  B). Lifiting Opening System for freestanding display cases-

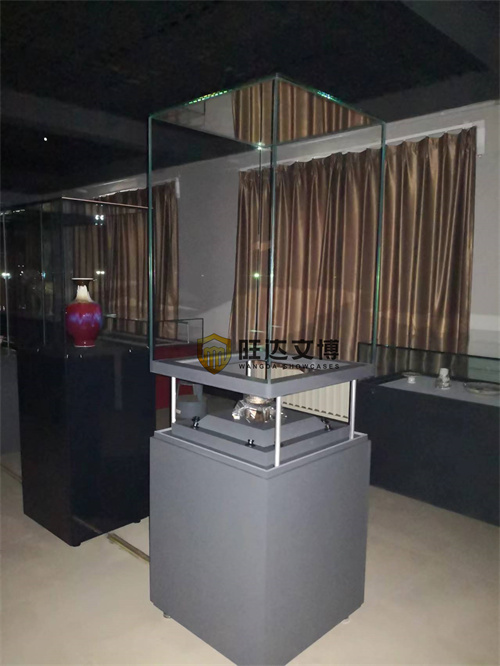

Equipped with concealed high-intennsity and durable vertical lifting system in the lower chamber of lower metal plinth, the lifting opening system allows the upper 5-sided-glass hood of freestanding display cases to lift up with max. opening at over 60% height of glass hood for full access. Scissor style or square lifting pillar or rod lifting pillar lifting systems ensure synchronous lifting stably at each corner so no risk of glass breakage comes up during the opening. Generally it's suggested to adopt lifting opening system just for freestanding display cases with slim glass hood but for freestanding display cases with much wider and higher glass hood, it's suggested to adopt traditional mono-rail pull & slide opening system. The unique design, robust structure and high-intensity materials make the opening mechanism not weaken the stability and airtightness of display cases.Manual or motor-driven or wireless remote-control lifting opening system can be customized particularly according to actual exhibition demand.

  C). Lifiting Opening System for floor-recessed display cases-

Equipped with concealed high-intennsity and durable vertical lifting system in the lower metal base, the lifting opening system allows the glass top of floor-recessed display cases to be lift up with max.  90° opening for full access.Flexible and durable lifting pillars with strong lifting strength to be customized to stably lift the glass top up and no risk of glass breakage comes up during the opening. The unique design, robust structure and high-intensity materials make the opening mechanism not weaken the stability and airtightness of display cases.Motor-driven or wireless remote-control lifting opening system can be customized particularly according to actual site condition and exhibition demand.
